iCHAIR MC1 LIGHT 1.610

Fields of Application

  • For indoor and outdoor use
  • For permanent, all-day use in independent mobility
  • For working and active people needing a wheelchair for various aspects of everyday life
  • Suitable for outdoor use thanks to standard large tyres
  • Compact dimensions and the high degree of manoeuvrability enable indoor spaces to be mastered with ease

Adjustment

  • Easy maintenance and a high level of serviceability guarantee efficiency
  • Little need for repair due to the use of high-quality and durable components
  • Modular design of the iCHAIR family enables compatibility of componentss
  • Numerous adjustment options allow individual adaptation
  • Simplified re-use due to optimum user limits

Operation

  • Ideal for keeping mobile at home and at work
  • Effective pressure relief and relaxed positioning for long sitting periods thanks to electrical adjustment ranges
  • Various seating systems according to individual needs
  • With innovative LiNX control system: Easy to understand, simple to operate and offers intuitive & individual configuration

Options

  • Rear-view mirror right
  • Rear-view mirror left
  • Rear marking plate
iCHAIR MC1 LIGHT

Compatible parts

iCHAIR MC1 LIGHT

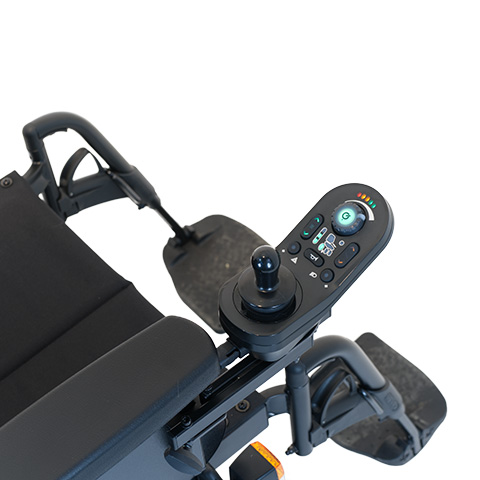

Innovative LiNX control from Dynamic Controls

iCHAIR MC1 LIGHT

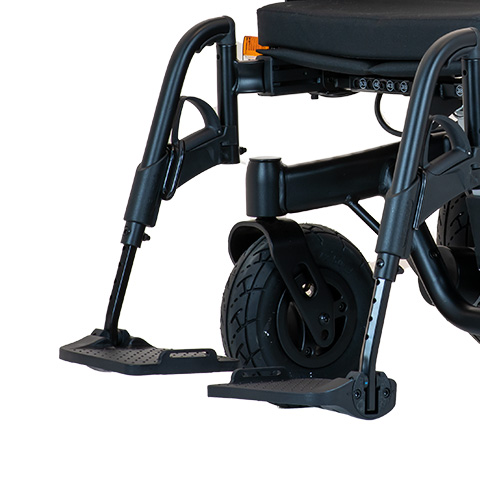

Castor wheels with aluminium rim

iCHAIR MC1 LIGHT

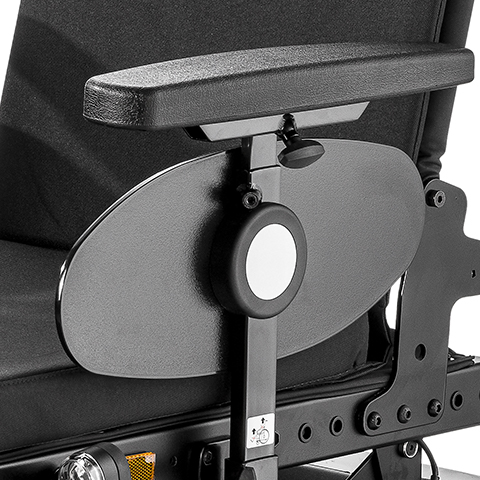

Standard side panel

Total width600 - 750
Seat width 1,2,3380 - 600
Seat depth 2,3400 - 530
Back rest height 2,3500
Shank lenght 2,3280 - 430
Arm support height 2,3240 - 350
Front seat height 2,3440 / 480 / 510
Length with footrests1,080
Length without footrests840
Width ready to move (without armrests)630
Height without headrest930 - 1,130
Transport dim. length840
Transport dim. height min.560 - 660
Transport dim. width630
Front wheel size230 x 70 (9")
Rear wheel size356 x 75 (14")
Max. obstacle height60
Turning radiusmind. 840
Min. transport weight empty basic version 494
User weight max.130
Permissible total weight incl. options280
Max. additional load10
Speeds km/h6 / 10
Motor power W2 x 180 / 2 x 300
Permitted gradient 43 Ah (5h), 50 Ah (20h) max. 6max. 30 km
Permitted nominal uphill / downhill
gradient		8.5° / 15 %
Type of steeringindirect
Electric tilt-in-space-4° to 24°
Mechanical tilt-in-space0° - 10°
Back angle electric-10° to 50°
Back angle mechanical-10° to 30°

Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm

1) see category Seat width 01
2) seating systems belt / Netti Sit / Ride Forward
3) seat angle 0°
4) Without legrests and without armrests
6) see category 00 chassis/motor
7) The adjustment range may deviate by max. +/-3° depending on SH and castor
wheel size.
