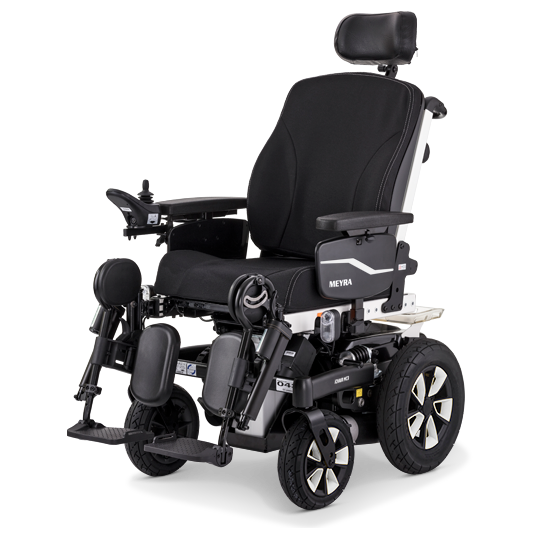

The new agile electric indoor-outdoor wheelchair impresses with sophisticated features and a fresh design
Standard client weight of 160 kg meets XL specifications
Outdoors: long sitting periods are made easier through standard fourwheel suspension
Indoors: compact drive with integrated anti-tilt wheels makes for ease of use in tight spaces, optional 300 mm lift makes the achievement of goods easier
Adjustment
Seat width from 380 - 650 mm by means of simple telescoping seat plate and side guards
Adjustable seat depth of 400 - 560 mm in six stages
Various seat systems to meet individual needs
Contoured ErgoSeat seat system in various dimensions
Electrical 60° back angle adjustment for user comfort
Electrical 35° seat angle adjustment for effective pressure relief
Operation
Tested VR2 and R-Net technology for unsurpassed performance and versatility
Speeds of 6 and 10 km/h pre-selectable in 5 steps
Compact dimensions and suspension are standard and make for safe travelling
Options
MySeat seat system
Luggage rack
Crutch/cane holder
Safety belt with buckle
Odometer
Operating hours counter
Rear view mirror
Pelvic belt
Occupant restraint system
Service-friendly, Simple battery maintenance, thanks to pull-out battery box
Innovative electronics
Long-life LED light
All-wheel suspension
Seat width
380 - 650
Seat depth
400 - 560 / 400 - 560 / 500 / 480 - 530
Back rest height
450 - 500 / 530 - 570 / 640 / 640
Shank lenght
280 - 430 / 350 - 500 / 350 - 500 / 350 - 500
Arm support height
240 - 350 / 180 - 290 / 140 - 250 / 180 - 290
Front seat height
460 - 520 / 530 - 590 / 580 - 640 / 610 - 670
Length with footrests
1,120
Length without footrests
870
Width ready to go
630 - 800
Height without headrest
970 - 1,140
Transport dim. width
630
Transport dim. length
870
Transport dim. height min.
590
Front wheel size
260 x 70 (10“)
Rear wheel size
356 x 75 (14“)
Max. obstacle height
70
Turning radius
900
Permitted gradient 38 Ah (5h), 45 Ah (20h)
25 - 30
Permitted gradient 63 Ah (5h), 73 Ah (20h)
35 - 40
Empty transport weight min.
108
Client weight max.
160*
Permitted overall weight
320
Additional loading max.
10
Driving speeds
6 / 10
Motor performance W, 6/12
2 x 220 / 2 x 350
Driving range max.
40 / 35
Permitted gradient
13 %
Type of steering
indirect
Electric tilt-in-space
-2° - +33°
Mechanical tilt-in-space
0° - +10°
Back angle electric
-10° - +50°
Back angle mechanical
-10° - +30°
Seat elevation electric
300
Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
