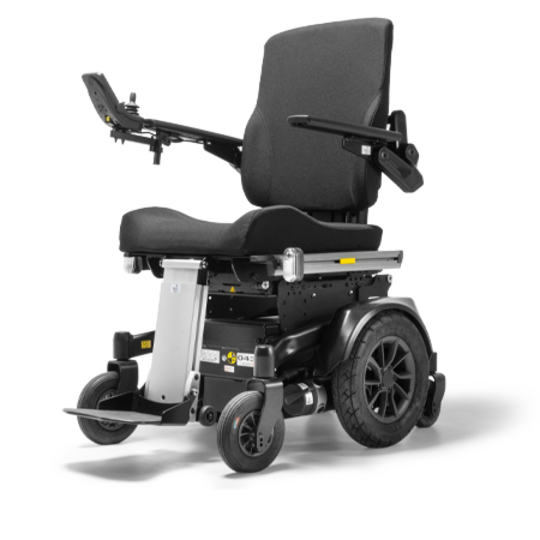

The uncompromising all-rounder for all application areas and user groups. More than just a power wheelchair – developed to meet a wide range of needs, from standard to high-end care.
Maximum comfort through a biomechanical backrest that reduces pressure points and supports optimal posture.
Outstanding driving characteristics
Comfortable suspension for high shock absorption
Optimized curb-climbing ability for overcoming obstacles
Compact design for tight indoor spaces, excellent tracking stability outdoors
Individual control: Choice between R-NET & LINX for maximum user-friendliness
Adjustment
Future-proof & modular: Adaptable to changing needs, minimizing follow-up costs
Functional design
Fast & efficient maintenance
Modular construction for quick repairs
High reusability through flexible retrofitting
Operation
Optimal pressure distribution & posture correction through a biomechanical backrest and positioning options
Comfortable suspension reduces vibrations – suitable for pain patients
Perfect center of gravity adjustment for stability & individual relief
New therapeutic applications enabled by the updated biomechanical seating system
Independent daily life – self-sufficient mobility even on demanding paths
Options
Extensive configuration possibilities for a customized adaptation
Adjustable suspension properties – from soft to firm
The power wheelchair that exceeds expectations
Agile & maneuverable for indoor & outdoor use
Sustainable & cost-efficient for users & medical suppliers
Service-friendly & modularly expandable
Therapeutic value through ergonomic perfection

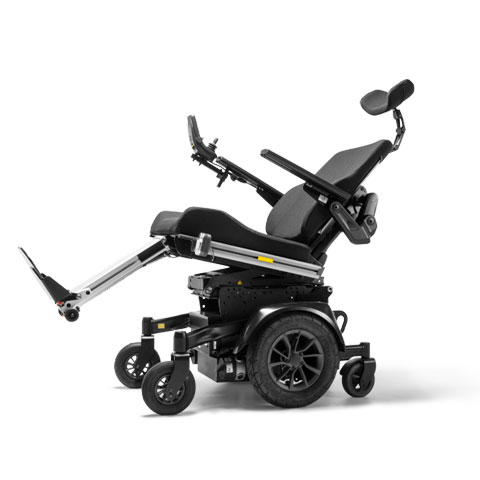

Electric seat tilt up to 50° for effective pressure relief

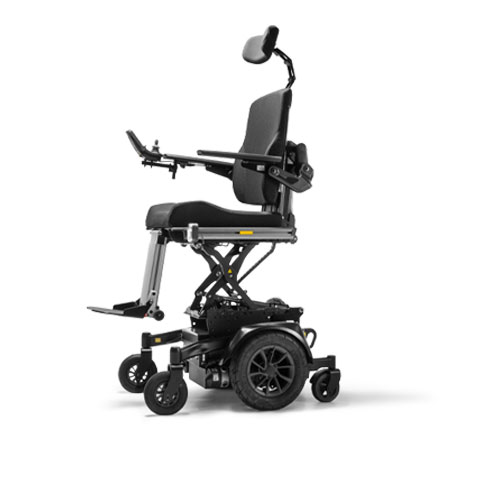

Scissor lift incl. seat tilt up to 30°

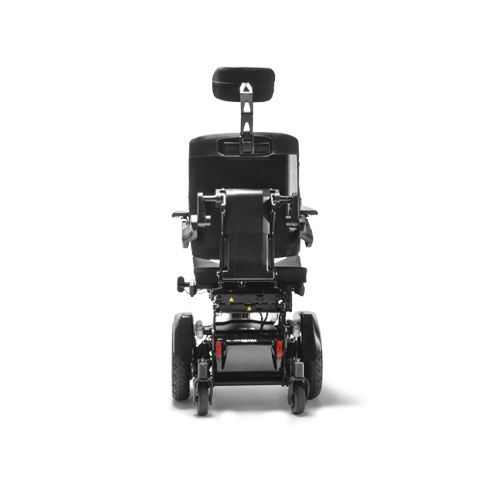

Biomechanical seat and back unit
Seat width
380, 430,480, 530
Seat depth
400 – 550
Seat height front
425, 460, 495 / 440, 475, 510
Lenght
111 – 133
Back height
520, 570 / 520, 570 / 572, 620
Lower leg length
340 – 480 / 280 – 450
Armrest height
250 – 360 / 220 – 380
Length with footrests central
1.200 – 1.350 / 1.100 – 1.200
Length without footrests
930
Width 12 inches ready to drive
600 / 600 / 640 / 680 / 800
Width 14 inches ready to drive
640 / 640 / 640 / 680 / 800
Height without head rest
940 – 1.180
Transport height min.
680 – 780
Max. obstacle height
60
Turning radius with central legrest
700
Turning radius with single leg rest
800
Ground clearance
70
Empty transport weight basic equipment min.
120 - 165
Permissible total weight
330
Permissible total weight incl. options
10
Max. additional load
6 / 10
Speed
2 x 180 / 2 x 350
Motor power
30 – 45
Range max.
15 %
Permitted uphill / downhill gradient
indirect
Steering type
0° to 30° / 0° to 50°
Seat tilt, electrical
-10° to 30° / -10° to 50° / 0° to 80°
Back angle, electrical
0°, 4°, 7°, 10°
Seat tilt, mechanical
520, 570 / 520, 570 / 572, 620
Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
